Edge Rack UPS Selection: Load, Runtime, U-Space and Remote Access

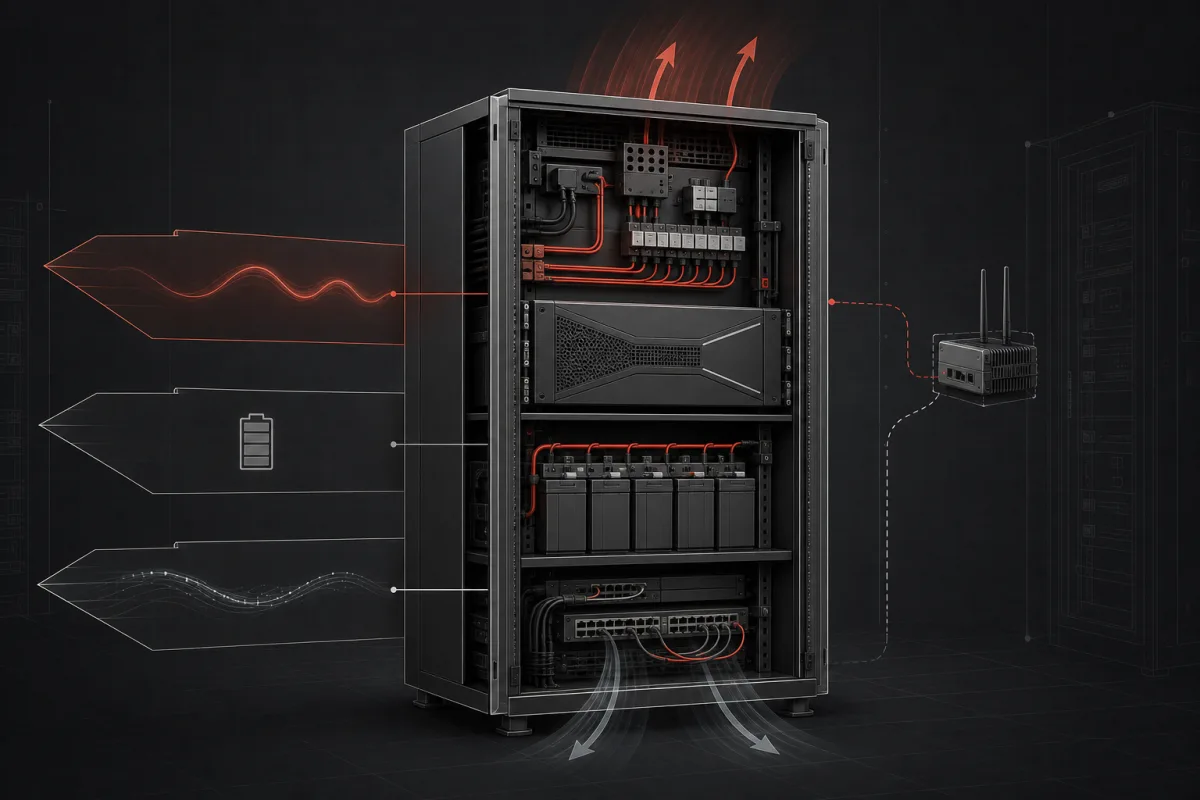

Define the complete rack-mount UPS installation

Start with the devices that must remain online and those that can shut down in sequence. A rack-mount UPS protects the equipment connected to it, but its usefulness at an unattended site also depends on a working alarm path and someone authorized to respond. Record the real load, required operating time and shutdown sequence together.

For a lithium battery UPS, choose between built-in batteries and an approved external-battery arrangement before reserving cabinet space. Host height alone does not describe the installed system. Add battery space, equipment depth, rails, cable bends and service access; a 19-inch mounting width does not guarantee cabinet compatibility.

Keep output voltage explicit. A 120V UPS requirement cannot be satisfied by assuming that a 220–240 V rack unit’s broad input window also describes its output. State the required load voltage, source and bypass arrangement as separate fields.

Five checks that change the recommendation

Identify which devices must remain online and which can shut down automatically. Put the value and its source in the technical schedule. A supplier should be able to point to the exact model, operating mode and condition used for the recommendation.

Define who receives an alarm, how quickly they act and what remote action is authorized. Treat this as an acceptance input, not a conversation note. If it changes after quotation, record the effect on capacity, battery, interfaces, evidence and delivery.

Check rack depth, connectors, airflow, ambient temperature and service access at the edge site. Verify it with a measurement, drawing, nameplate, manufacturer requirement or approved project document. An unstated assumption here can invalidate the rest of the selection.

Classify loads as continuous, orderly-shutdown, or non-critical before calculating UPS capacity. Ask competing suppliers to answer this item with the same scope, condition and evidence format. That makes the proposals technically comparable before price is considered.

Reserve rack U-space, cable paths, airflow, service clearance and battery-module expansion space. Assign an owner to confirm this point before sample or commissioning tests. The final record should show both the required value and the evidence that the delivered system meets it.

Make supplier proposals comparable

Issue the same controlled requirement to every bidder and ask each response to show assumptions, deviations and optional items beside the relevant line. For “Edge Rack UPS Selection: Load, Runtime, U-Space and Remote Access,” reject any response that silently changes a material project condition or evidence scope.

Resolve technical differences before comparing price; two offers based on different loads, environments or evidence scopes are not equivalent.

Verify the approved requirement

Turn the agreed requirement into a verification record. Identify the exact supplied item and configuration, the evidence or test method, the applicable condition and the expected result for the question “What is the minimum information needed to protect an unattended edge rack?” For performance tests, retain instruments, readings, alarms and timestamps; for document reviews, retain the issuer, scope and revision.

Keep the verification with the approved configuration so later changes can be assessed against the same baseline. A successful verification applies only to the delivered configuration and stated conditions; it is not a blanket guarantee for a different load, site, document scope or operating mode.

Common failure modes in this decision

A shortcut that hides a boundary or cannot be verified should be clarified before approval.

• Putting every IT load in one runtime tier
• Oversizing without checking part-load efficiency
• Installing monitoring without testing the alert path
• Answering “What is the minimum information needed to protect an unattended edge rack?” without naming the exact configuration and evidence

Where Highidea fits

Highidea ET1-3KR provides a built-in LiFePO4 rack UPS architecture, while ET 1–10KRS uses external LiFePO4 packs. ET1-3KR documents 208/220/230/240 VAC output choices. For 100/110/120/127 VAC requirements, evaluate the DT family separately and confirm the rack configuration.

Send a load list and cabinet drawing with your inquiry. Ask for the host, battery, dimensions and monitoring options to be identified together, then verify the remote notification and shutdown sequence for that exact combination.

Copy this into your RFQ

Adapt these lines to the project and replace every unknown with an explicit supplier question.

• Confirm in the quotation: Identify which devices must remain online and which can shut down automatically.
• Confirm in the quotation: Define who receives an alarm, how quickly they act and what remote action is authorized.
• Confirm in the quotation: Check rack depth, connectors, airflow, ambient temperature and service access at the edge site.
• Confirm in the quotation: Classify loads as continuous, orderly-shutdown, or non-critical before calculating UPS capacity.
• Confirm in the quotation: Reserve rack U-space, cable paths, airflow, service clearance and battery-module expansion space.

Authoritative references and scope

These primary sources support the industry explanation and checklist; product compliance or performance still requires evidence for the quoted model and configuration.

U.S. Department of Energy: Best Practices Guide for Energy-Efficient Data Center Design

NIST: NIST SP 800-53 Rev. 5 — Security and Privacy Controls
