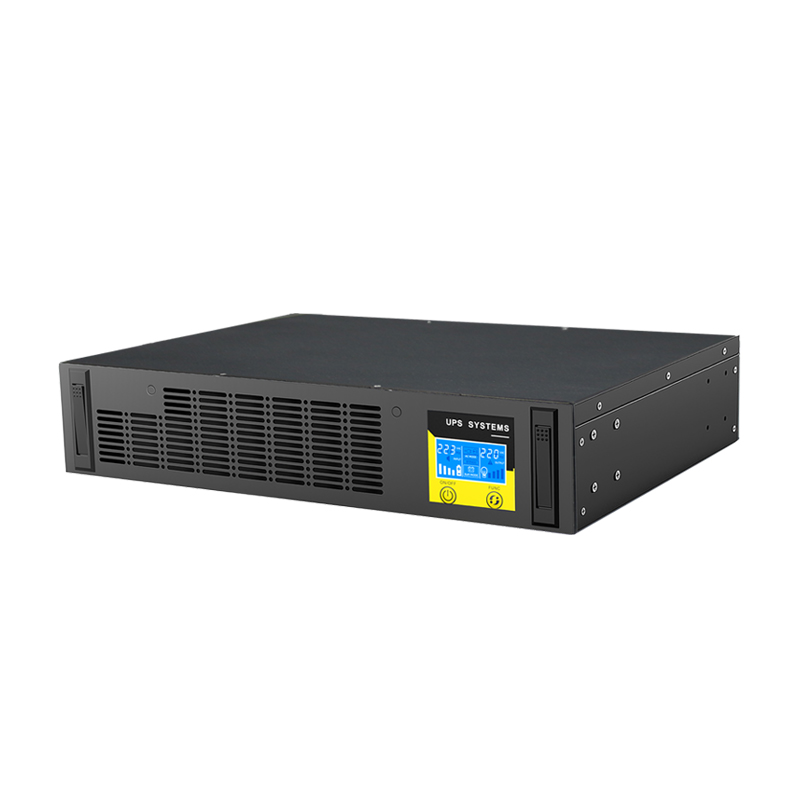

Technical specifications ET1-3KR product image

Front

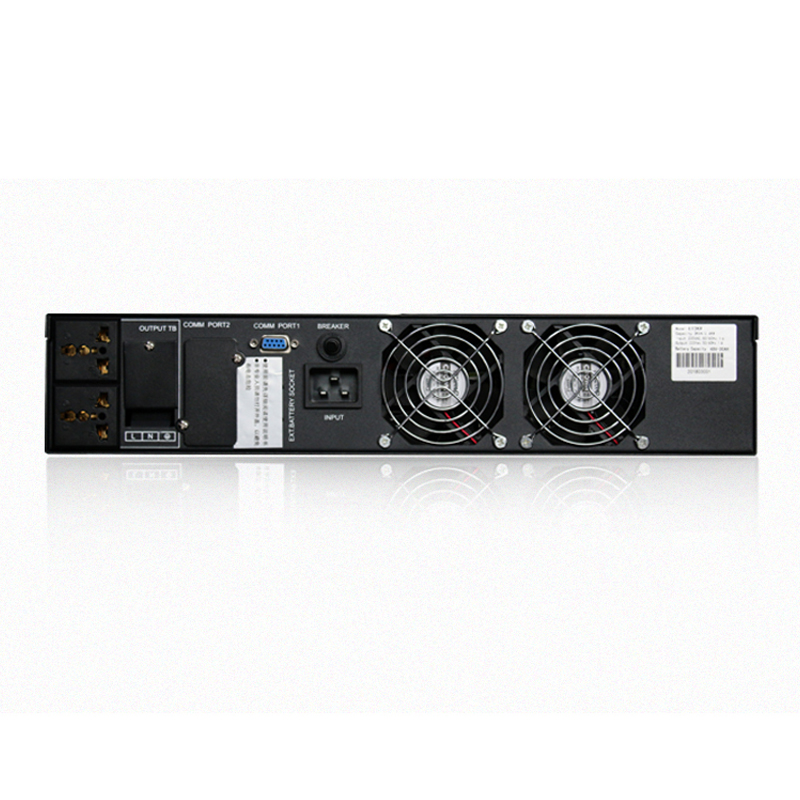

Alt view

Rack-mounted online UPS

ET1-3KR Rack-Mounted Online UPS — Built-in LiFePO4 Battery

Name: ET1-3KR Rack-Mounted Online UPS — Built-in LiFePO4 Battery
Brand: Highidea Power

The ET1-3KR is the rack-mounted (19-inch) version of the ET-series online UPS — same DSP-controlled online double-conversion platform, built-in Class-A LiFePO4 battery and 0 ms transfer as the ET1-3K tower, in a space-saving rack form factor for data-centre cabinets, telecom racks and edge IT.

Capacity

1 / 2 / 3 kVA

Topology

Online double-conversion (VFI)

Transfer Time

0 ms

Chemistry

Class-A LiFePO4 (built-in)

Full Load Runtime

≥30 minutes

Request a quote Open manual

CE-LVD scope available2-year UPS warranty

Confirm host, battery, runtime and document scope for the exact configuration

Standard 19-inch rack form factor

saves space in data-centre and telecom cabinets.

Pure online double-conversion wi…

Pure online double-conversion with 0 ms transfer for uninterrupted, regulated output.

Integrated Class-A LiFePO4 battery

maintenance-free, >10-year float life, >1,200 cycles, ≥30 min runtime.

Full-digital DSP control with hi…

Full-digital DSP control with high-frequency PWM for precise, efficient regulation.

Technical data

ET1-3KR specifications.

Compare the electrical, battery, monitoring, environmental and compliance data for this product family.

01Electrical

Capacity1 / 2 / 3 kVA

Form Factor19-inch rack-mounted

TopologyOnline double-conversion (VFI)

Input Voltage110–300 VAC (feature claim); parameter table: 220 VAC rated, (172–268) ±7 VAC range

Input Frequency50/60 Hz auto-sensing; parameter table range (45–55)/(55–65) ±0.5 Hz

Output Voltage208 / 220 / 230 / 240 VAC, selectable

Output Frequency50 / 60 Hz, auto

Output WaveformPure sine wave

Power Factor Output0.8

Transfer Time0 ms

Topology ExtrasActive PFC, high-frequency PWM, 3-/4-level lightning protection

02Battery

ChemistryClass-A LiFePO4 (built-in)

ConfigurationIntegrated, maintenance-free

Cycle Life>1,200 cycles

Float Life>10 years

Full Load Runtime≥30 minutes

BMSBuilt-in battery management & protection

03Management & Monitoring

Standard InterfaceRS232

OptionalRS485 / Modbus, dry contacts, SNMP cloud card

Cloud MonitoringMobile APP + web platform (optional card)

Shutdown SoftwareWindows / Linux / VM / NAS auto-shutdown

AlertsPower-failure & fault alarms, remote power on/off

04Environment & Mechanical

Operating Temperature−10°C to +40°C (battery not below 0°C)

Relative Humidity20%–90%, non-condensing

Conformal CoatingThree-proofing (moisture / dust / salt-mist)

Rack Height88 mm equipment height (all ET1KR/ET2KR/ET3KR in source table)

Dimensions WeightNet W×H×D: ET1KR 440×88×300 mm / 9.5 kg; ET2KR, ET3KR 440×88×540 mm / 20.6 kg, 23 kg

05Compliance & Warranty

CECE-LVD to EN IEC 62040-1:2019/A2:2025; verify the ordered model against the six certificate model lists

WarrantyUPS main unit: 2 years

Request the full user manual & datasheet

Selection guide

Is this the right model for you?

Quick pointers to confirm fit, or steer you to a sibling model.

Choose the ET1-3KR when its power range, format and operating role match your application.
Provide capacity, input/output voltage, runtime, installation format and destination-market document requirements for final model selection.

Recommended for

Where the ET1-3KR performs.

Data-centre cabinets

ET1-3KR can be configured for this application; final sizing depends on the load, runtime and site conditions.

View solution

Telecom & network racks

ET1-3KR can be configured for this application; final sizing depends on the load, runtime and site conditions.

View solution

Edge & branch IT

ET1-3KR can be configured for this application; final sizing depends on the load, runtime and site conditions.

View solution
