Sizing an Industrial UPS for Motors, Contactors and High-Inrush Loads
By Highidea Power Engineering Team · 8 February 2026 · 6 min read

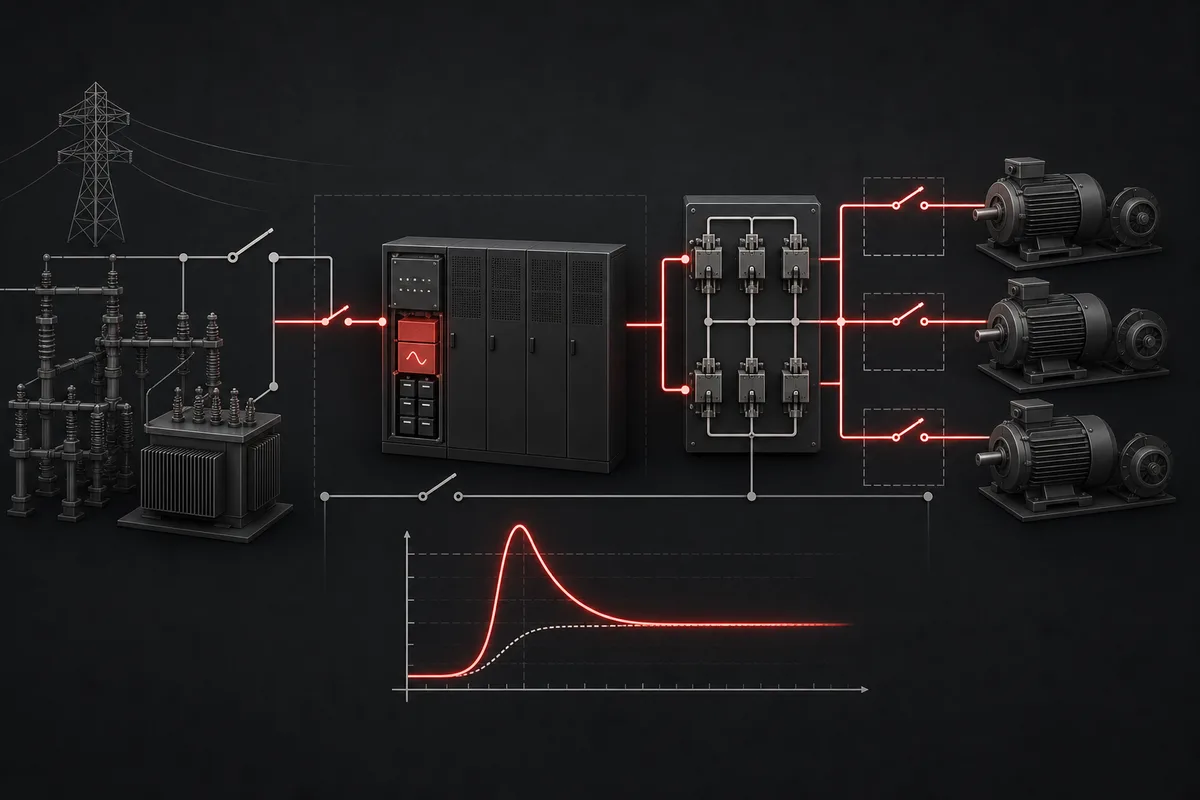

Size an industrial UPS against running demand, starting current, event duration and permitted voltage dip. A low-frequency UPS or transformer-based UPS still needs model-specific overload and transfer checks; the transformer label alone does not establish suitability for a motor or other high-inrush load.
Describe the starting event before choosing a UPS type
List the loads that start together, their starting method and the duration of the event. A motor, transformer and group of contactors can impose different demands even when their running watts are similar. Obtain the equipment supplier’s starting information or an engineer-approved measurement before comparing UPS proposals.
If you are considering a low-frequency UPS, ask where its transformer is located and request overload behavior for inverter and battery operation. Check what happens when the demand causes transfer to bypass. A load that remains energized but experiences an unacceptable voltage dip has not necessarily met the process requirement.
Distinguish an AC-input industrial UPS from a DC-fed utility inverter. A station battery-bus survey applies when that DC source is part of the proposed system; it is not a universal prerequisite for every mains-fed UPS installation.
Five checks that change the recommendation
Record starting method, current, duration and how many loads can start together. Assign an owner to confirm this point before sample or commissioning tests. The final record should show both the required value and the evidence that the delivered system meets it.
Check voltage dip tolerance and whether the process can sequence or shed loads. State who supplies the input, who approves it and when it becomes frozen. This prevents an unresolved assumption from moving into production or installation.
Compare the demand with model overload curves and obtain supplier confirmation for the exact load. Link the requirement to the exact drawing, measurement, report or supplier declaration used to close it. Keep revisions visible when the configuration changes.
Define isolation, output distribution, bypass, source priority and acceptable interruption for each load group. Describe the acceptable result before testing or document review begins. Evidence is easier to judge when pass, deviation and rework outcomes are already defined.
If the proposal uses a station DC battery bus, confirm its operating range, grounding and protection; otherwise document the AC input and bypass supplies. Check the boundary of the answer: model, option, load, environment, market and date. A correct statement can become misleading when any of those changes.
Make supplier proposals comparable
Ask every bidder to complete the same matrix rather than accepting differently structured brochures. Each answer should state its scope and identify unresolved points. For “Sizing an Industrial UPS for Motors, Contactors and High-Inrush Loads,” reject any response that silently changes a material project condition or evidence scope.
Only compare headline ratings and prices after the technical matrix shows that the offers address the same duty and conditions.
Review item | Requirement to state | Decision record |
|---|---|---|
Technical check 1 | Record starting method, current, duration and how many loads can start together. | Record the evidence, responsible approver and effect on the guide decision. |
Technical check 2 | Check voltage dip tolerance and whether the process can sequence or shed loads. | Record the evidence, responsible approver and effect on the guide decision. |
Technical check 3 | Compare the demand with model overload curves and obtain supplier confirmation for the exact load. | Record the evidence, responsible approver and effect on the guide decision. |
Technical check 4 | Define isolation, output distribution, bypass, source priority and acceptable interruption for each load group. | Record the evidence, responsible approver and effect on the guide decision. |
Verify the approved requirement
Turn the agreed requirement into a verification record. Identify the exact supplied item and configuration, the evidence or test method, the applicable condition and the expected result for the question “Why is steady-state kW insufficient for industrial load sizing?” For performance tests, retain instruments, readings, alarms and timestamps; for document reviews, retain the issuer, scope and revision.
If the delivered hardware, battery, firmware, wiring or documentation changes, repeat the checks affected by that change. A successful verification applies only to the delivered configuration and stated conditions; it is not a blanket guarantee for a different load, site, document scope or operating mode.
Common failure modes in this decision
Pause the decision when a proposal depends on one of these unverified shortcuts.
- Sizing industrial loads from steady watts only
- Treating isolation as a marketing checkbox
- Commissioning without recording transfer and alarm behavior
- Answering “Why is steady-state kW insufficient for industrial load sizing?” without naming the exact configuration and evidence
Where Highidea fits
Highidea lists GD 6–30K as an industrial-frequency online UPS with 110 V output and GX33 as a separate three-phase industrial-frequency family. These are candidates for a technical inquiry, not a blanket claim that either family can start the proposed motors.
Send the load-event sequence, supply details and allowed interruption to Highidea. Ask the supplier and project engineer to approve one configuration against overload behavior, output dip, bypass conditions and the installation’s protection design.
Copy this into your RFQ
Copy the relevant lines into the RFQ and assign an owner to close each unanswered item before approval.
- Confirm in the quotation: Record starting method, current, duration and how many loads can start together.
- Confirm in the quotation: Check voltage dip tolerance and whether the process can sequence or shed loads.
- Confirm in the quotation: Compare the demand with model overload curves and obtain supplier confirmation for the exact load.
- Confirm in the quotation: Define isolation, output distribution, bypass, source priority and acceptable interruption for each load group.
- Confirm in the quotation: If the proposal uses a station DC battery bus, confirm its operating range, grounding and protection; otherwise document the AC input and bypass supplies.
Authoritative references and scope
Use these authoritative sources to interpret the topic and frame supplier questions. Verify any product claim against model-scoped documents.
FAQ
Frequently asked questions
Why is steady-state kW insufficient for industrial load sizing?
Size an industrial UPS against running demand, starting current, event duration and permitted voltage dip. A low-frequency UPS or transformer-based UPS still needs model-specific overload and transfer checks; the transformer label alone does not establish suitability for a motor or other high-inrush load.
What should be fixed before requesting a quotation?
Send the exact load and source data, required operating outcome, site conditions, interfaces, target market and evidence requirements. For this decision, include: Record starting method, current, duration and how many loads can start together. Check voltage dip tolerance and whether the process can sequence or shed loads. Compare the demand with model overload curves and obtain supplier confirmation for the exact load.
When is model-specific confirmation required?
Use family information to shortlist an architecture, but confirm the exact model, configuration, operating mode, test conditions and document scope in the quotation or approved technical schedule.
