ECDIS UPS Runtime: Define the Navigation Dependencies Before Choosing a Battery
By Highidea Power Engineering Team · 16 March 2026 · 5 min read
Define ECDIS backup power from the equipment and dependencies that must remain available under the vessel's approved operating arrangement. A UPS reference installation does not establish another system's required autonomy, transfer tolerance or maritime approval. Record the complete navigation load, the relevant source-change events and the acceptance conditions before selecting the UPS and battery configuration.

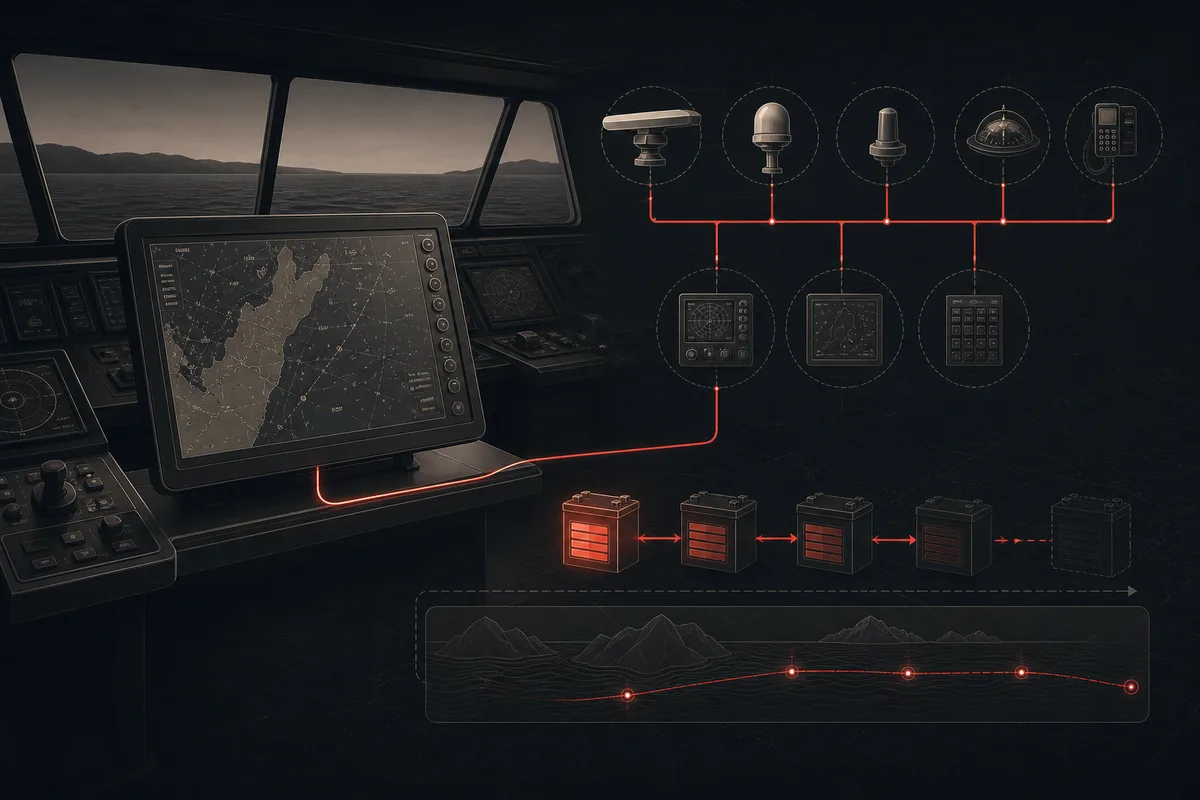

Map the system that must keep functioning
An ECDIS workstation can depend on more than the display or computer visible at the console. The integrator should identify sensors, interfaces, network equipment and any other powered components necessary for the required function. Some may have separate backed-up supplies; others may share the proposed UPS. The wiring and approved system design must settle that boundary.
Begin with the equipment manufacturer's power requirements and the vessel project's applicable rules. Agree the responsibility for specifying and approving the arrangement with the owner, integrator and relevant qualified parties. Do not turn a general UPS runtime recommendation into a rule for every vessel or ECDIS installation.
Keep autonomy and source transfer separate
Autonomy describes how long the agreed loads can operate from stored energy. Transfer behavior describes what happens when the power path changes. A long-running UPS can still be unsuitable if its battery waveform or interruption behavior is incompatible with the equipment.
Requirements in these rows can be related, but one passing result does not close the others. A runtime test is not a substitute for equipment compatibility or system approval.
Requirement | Details and decision |
|---|---|
Protected boundary | Question to close: Which ECDIS and supporting loads remain powered?; Evidence needed: Equipment list and supply drawing |
Autonomy | Question to close: What operation must remain available, and for how long?; Evidence needed: Project requirement and load profile |
Transfer tolerance | Question to close: What may happen during each source change?; Evidence needed: Equipment limits and model-specific behavior |
Waveform and voltage | Question to close: What does each load accept in battery operation?; Evidence needed: Manufacturer input specification |
Recovery | Question to close: What must restart automatically or be checked?; Evidence needed: Approved restoration sequence |
Read the LT1000-110 reference within its limits
Highidea's ECDIS case reference identifies an LT1000-110 UPS. That establishes a documented application reference, not a transferable acceptance result. The available case duration is not paired with enough load and test conditions to use it as the sizing basis for another navigation system. This guide therefore does not quote it as a promised runtime.
The LT family is documented as line-interactive, with approximately 4–8 ms transfer and simulated-sine output in battery mode. Those features must be compared with the actual equipment manufacturer's limits. If the load requires different behavior, request an appropriate alternative rather than assuming the ECDIS reference makes every LT configuration suitable.
The reference also does not prove class, flag or maritime type approval for a new project. Ask for the exact required approval and its applicable model scope separately. An application description, a CE document and a maritime approval are different forms of evidence.
Calculate the load profile before requesting autonomy
List each included device's watts and VA information and identify normal, startup and source-change conditions. Avoid estimating the complete system from the ECDIS computer alone. If a network device or interface is required to keep the specified function available, its supply belongs in the design review even if its demand is modest.
For an illustrative planning exercise, a 250 W protected group operated for two hours requires 500 Wh delivered to the loads before accounting for conversion losses, battery limits, temperature, aging assumptions and design margin. This arithmetic is not battery capacity selection and is not an LT1000-110 rating. Ask the supplier to provide a configuration-specific runtime result instead of dividing a battery's nominal watt-hours by the load.
Evaluate the whole operating envelope
Confirm source voltage and frequency, battery-mode output, permitted equipment supply ranges and any bypass path. A 110 V label does not prove compatibility with every nearby nominal voltage. An input frequency range also does not automatically promise output frequency conversion.
Review temperature, humidity, mounting, ventilation, vibration and service access against the offered product's documentation and the vessel design. Salt-mist or maritime application wording should not be promoted into a tested environmental qualification without the relevant evidence. Only use a model's documented operating conditions and approved installation method.
Define an acceptance sequence with the integrator
Qualified personnel should agree and conduct the test, with appropriate protection and representative equipment. The sequence should identify initial conditions, the source-change event, which functions remain available, alarms, elapsed time and restoration behavior. Record the exact UPS, battery configuration, load list and instrumented observations.
Ask the responsible parties how a deviation will be handled before the test begins. Do not improvise live power interruptions on navigation equipment to see whether it survives. A controlled acceptance record should confirm the project's requirements without creating an operational hazard or being mistaken for a wider product approval.
Send a complete ECDIS backup request
Provide Highidea with the approved equipment power requirements, dependent-load list, required autonomy, permitted transfer/waveform conditions, vessel supply details and installation constraints. Request a configuration that addresses each item and names any unresolved condition.
Use the ECDIS reference to start a relevant discussion, then close the current project with its own evidence. The final answer should state what remains operational, under which power conditions and for how long, while keeping product performance, system acceptance and required approvals distinct.
Sources and product context
The following primary references support the industry context. They do not establish conformity, compatibility or performance of every Highidea product. Model-specific product statements in this guide follow the cited Highidea product and application records.
IEC: IEC 62040-3:2021 — UPS performance and test requirements
FAQ
Frequently asked questions
Does the LT1000-110 ECDIS reference prove marine approval?
No. A documented application reference does not establish the class, flag or type approval required for a new project. Request the exact applicable approval and model scope separately.
Can the reference duration size another ECDIS system?
No. A transferable runtime decision needs the protected load, exact UPS and battery arrangement, conditions and test basis. This guide does not use the reference duration as a sizing promise.
Is long runtime enough if the equipment needs different transfer behavior?
No. Check waveform, voltage and permitted interruption separately. LT is documented as line-interactive with approximately 4–8 ms transfer and simulated-sine battery output; compatibility depends on the protected equipment.
