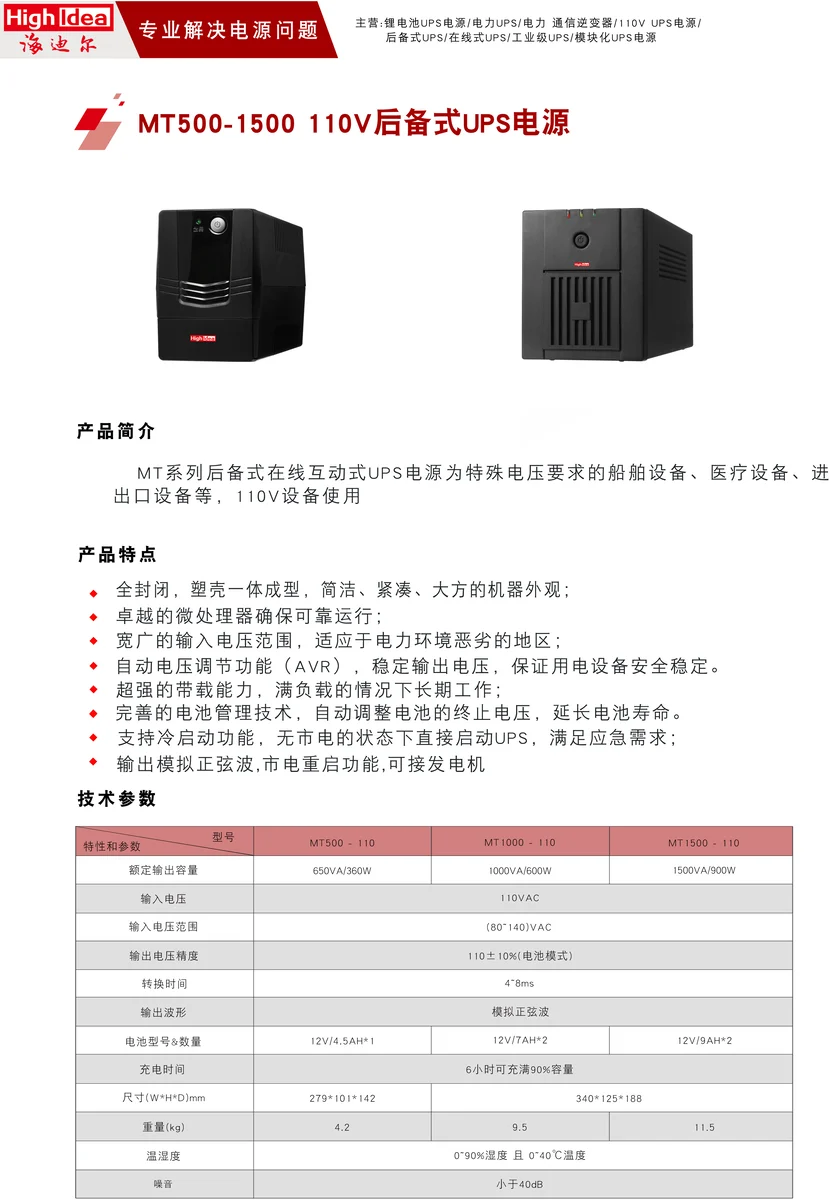

Highidea MT Series — Line-Interactive Backup UPS (lead-acid)
The MT Series is the lead-acid counterpart to the lithium LT line: a cost-oriented line-interactive/backup UPS with simulated-sine output, approximately 4–8 ms transfer, and both 220 V and 110 V variants. It covers small office/desktop loads and selected marine or import/export equipment that does not require online double-conversion.
Confirm host, battery, runtime and document scope for the exact configuration
Capacity
220V— MT500A 500VA/300W · MT650 600/360 · MT1000(B) 1000/600 · MT1500 1500/900 · MT2000 2000/1200. 110V— MT500-110V 600/360 · MT1000V-110V(-PRO) 1000/600 · MT1500V-110V(-PRO) 1500/900
Topology
Line-interactive / backup, simulated sine
Chemistry
Lead-acid (VRLA)
Config
220V— 4.5AH×1 / 7AH×1 / 9AH×1 / 7AH×2 / 9AH×2. 110V— 12V/7AH×1 / ×2 / 12V/9AH×2
Technical data
MT Series (MT500A/MT650/MT1000(B)/MT1500/MT2000 + MT-110V variants) specifications.
Compare the electrical, battery, monitoring, environmental and compliance data for this product family.
Selection guide
Is this the right model for you?
Quick pointers to confirm fit, or steer you to a sibling model.
- Choose the MT Series (MT500A/MT650/MT1000(B)/MT1500/MT2000 + MT-110V variants) when its power range, format and operating role match your application.
- Provide capacity, input/output voltage, runtime, installation format and destination-market document requirements for final model selection.
Recommended for
Where the MT Series (MT500A/MT650/MT1000(B)/MT1500/MT2000 + MT-110V variants) performs.
FAQ
Frequently asked questions
What should I provide to select the right MT Series (MT500A/MT650/MT1000(B)/MT1500/MT2000 + MT-110V variants)?
Share the load in watts or VA, input and output voltage, required runtime, installation format, site conditions and destination market. Our team will match the product, battery and monitoring options to the application.
Can I request a datasheet for the MT Series (MT500A/MT650/MT1000(B)/MT1500/MT2000 + MT-110V variants)?
Yes. Contact sales with the required rating and destination market to receive the applicable datasheet, manual and compliance-document list.
Start a project
Configure a MT Series (MT500A/MT650/MT1000(B)/MT1500/MT2000 + MT-110V variants) for your site.
Tell us the load, voltage, runtime, site conditions and destination. Sales will confirm the host, battery and configuration-specific document scope.
